PVC Acoustic Panels from Yayin New Materials
As a PVC Acoustic Panels Manufacturers manufacturer, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.
As a dedicated PVC Acoustic Panels manufacturer and exporter, Yayin New Materials Jiangsu Co., Ltd. combines advanced polyester fiber technology with durable PVC surfaces to deliver acoustic solutions for commercial, educational, and hospitality projects. Our panels are engineered for sound absorption, moisture resistance, and design flexibility, supporting both standard and fully customized specifications.
With headquarters in Lianyungang and branch factories in Huzhou and Nanchang, we control production from raw material to finished panel, ensuring consistent quality across every batch.
Product Range and Positioning
Our PVC acoustic panels are available in two primary configurations, each tailored to different acoustic and aesthetic requirements:
| Panel Type |
Core & Surface |
Typical Applications |
| Modern Design Wood Acoustic Panels |
Polyester fiber core with wood veneer surface |
Home offices, classrooms, libraries, hotels |

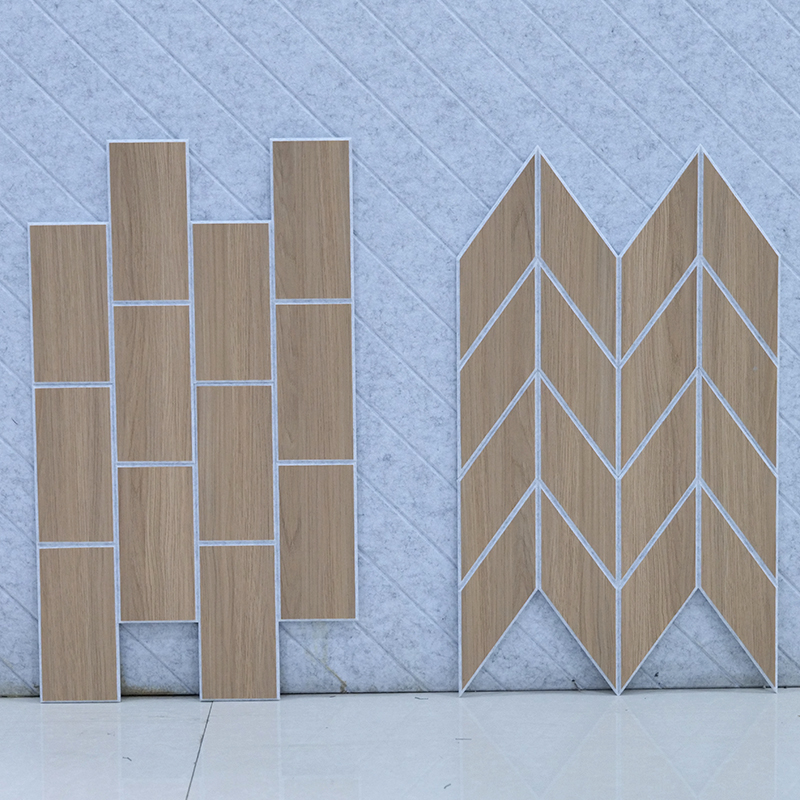

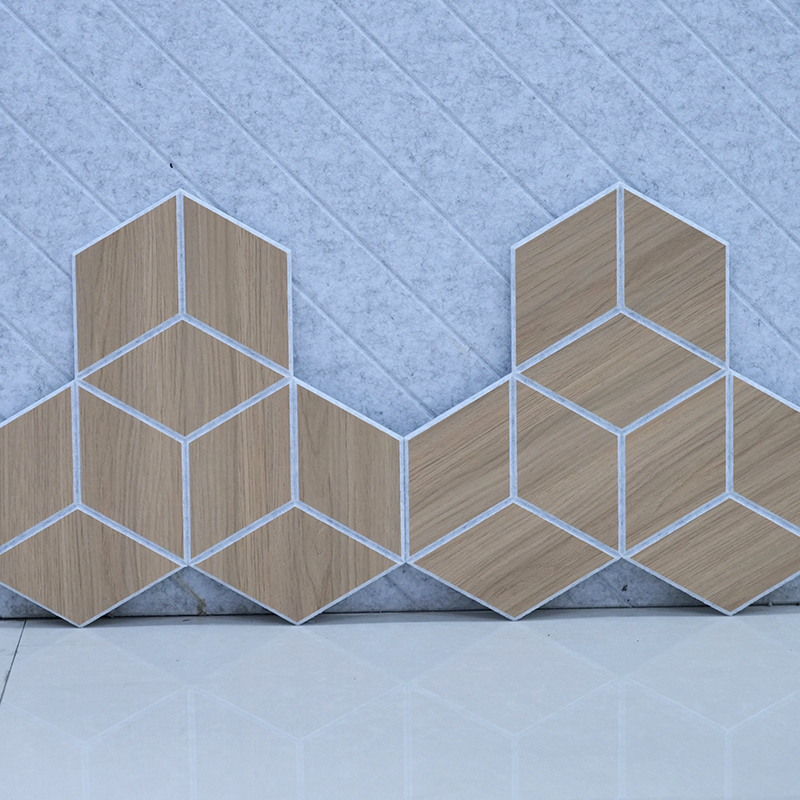

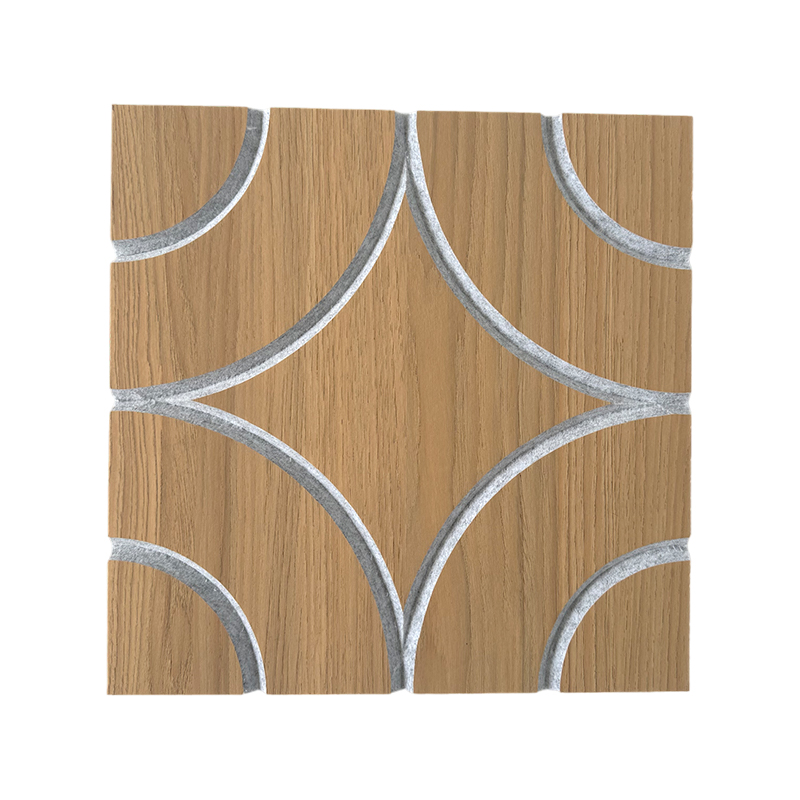

| Premium Modern Design Wood Acoustic Panels |
High-density PVC or polyester fiber base with wood-grain finish |
Meeting halls, theaters, recording studios, auditoriums |
Both types are manufactured using a heat-pressing process that bonds the PVC or veneer layer to a sound-absorbing polyester fiber board. This construction provides structural stability, moisture resistance, and a cleanable surface, making the panels suitable for high-humidity environments where traditional wood panels may warp.
Engineering and Performance
Our acoustic panels are designed to address real-world noise challenges. The slatted geometry breaks up direct sound waves, while the porous polyester fiber core absorbs kinetic energy, reducing reverberation and improving speech clarity. Depending on the model and density, our panels achieve a Noise Reduction Coefficient (NRC) ranging from 0.55 to 0.95, with the premium version reaching up to 0.95 for broadband absorption.
- Core densities: 1900 g/m² and 2400 g/m² options allow tuning for speech-focused or larger spaces.
- Thickness: 9 mm for mid-to-high frequency absorption (offices, classrooms); 12 mm for extended low-frequency performance (music halls, theaters).
- Fire safety: Our polyester fiber materials meet ASTM E84 Class A, EN13501-1 Class B, and UL723-2018 Class A standards.
- Environmental compliance: Formaldehyde emissions are at E0 level, and our production is ISO9001 and ISO14001 certified.
Application Fit
PVC acoustic panels are suited for a wide range of indoor environments where both acoustics and aesthetics matter. Our panels are commonly specified for:
- Office environments: Open-plan areas and meeting rooms benefit from reduced noise distraction and better speech privacy.
- Educational spaces: Classrooms and libraries achieve clearer communication and quieter study zones.
- Hotels and hospitality: Corridors, lobbies, and guest rooms gain a calm atmosphere with durable, easy-to-maintain surfaces.
- Cultural and entertainment venues: Theaters, cinemas, and recording studios require precise acoustic control; our premium panels deliver consistent absorption.
For projects requiring a specific visual identity, we offer customization in size, color, and pattern. The PVC surface can be cut into creative shapes, and wood veneer options include standard species like Oak, Walnut, and Teak, with custom staining available.
Configuration and Customization
We understand that each project has unique requirements. Our team works with you to configure panels that match your acoustic targets and design intent. Key configuration options include:
- Dimensions: Standard sizes include 2400mm x 600mm and 2700mm x 600mm, but we can produce custom lengths and widths to fit your layout.
- Slat gap: Optimized between 10mm and 15mm for sound diffusion; we can adjust based on frequency absorption needs.
- Surface finish: Choose from a range of wood grains, solid colors, or custom printed patterns.
- Edge detailing: Square, beveled, or rabbeted edges for seamless installation.
For large-scale projects, we provide technical drawings and installation guidance to ensure proper mounting and acoustic performance.
Quality Assurance and Testing
Every panel undergoes rigorous quality control, from raw material inspection to final dimensional checks. Our testing protocols verify:
- Acoustic performance (NRC) in accordance with recognized standards.
- Fire retardancy to meet international classifications.
- Moisture and mildew resistance for long-term durability.
- Formaldehyde emission levels to ensure indoor air quality.
We maintain ISO9001 for quality management and ISO14001 for environmental management, reflecting our commitment to consistent production and sustainable practices.
Installation and Maintenance
Proper installation is key to achieving the desired acoustic effect. We recommend the following:
- Acclimatization: Store panels in the installation environment for at least 48 hours before mounting.
- Substrate preparation: Ensure walls are dry, level, and dust-free. For maximum absorption, install over a furring strip system with an air gap or additional insulation.
- Mounting: Panels can be adhesive-bonded to clean walls; mechanical fasteners or Z-clip systems are recommended for ceilings or where removable access is needed.
- Maintenance: Clean with a dry micro-fiber cloth or vacuum with a soft brush. Avoid liquid cleaners to protect the surface.
Information We Use to Configure Your Solution
To prepare an accurate quotation and technical proposal, we need the following project details:
- Room dimensions and ceiling height
- Primary use (e.g., office, classroom, theater) and acoustic goals
- Desired NRC range or specific frequency absorption targets
- Panel dimensions, thickness, and surface finish preferences
- Quantity and delivery location
- Any special certifications or compliance requirements
With this information, our engineering team can recommend the optimal panel configuration and provide samples for your approval before mass production.
Frequently Asked Questions
What is the difference between your two PVC acoustic panel models?
The Modern Design panels use a polyester fiber core with a wood veneer surface, ideal for speech clarity in offices and classrooms. The Premium version features a high-density PVC or polyester base with a wood-grain finish, offering higher NRC (0.85-0.95) and broader frequency absorption for theaters and auditoriums.
Can you match custom colors or wood species?
Yes, we offer 8 standard wood species and custom color matching. Provide RAL, NCS, or physical samples, and we will match them. Custom colors may add 10-15 working days to lead time.
Are your panels suitable for humid environments like bathrooms or coastal areas?
Yes, our PVC and polyester fiber construction is moisture-resistant and mildew-proof, making them suitable for high-humidity climates. However, avoid direct water exposure and ensure proper ventilation.
What are the lead times for standard and custom orders?
Standard orders typically ship within 7-10 working days. Custom orders may take longer depending on complexity. We provide accurate timelines with your quotation.
Do you provide samples for evaluation?
Yes, we offer free samples. Contact us with your requirements, and we will send samples for acoustic and visual testing.
