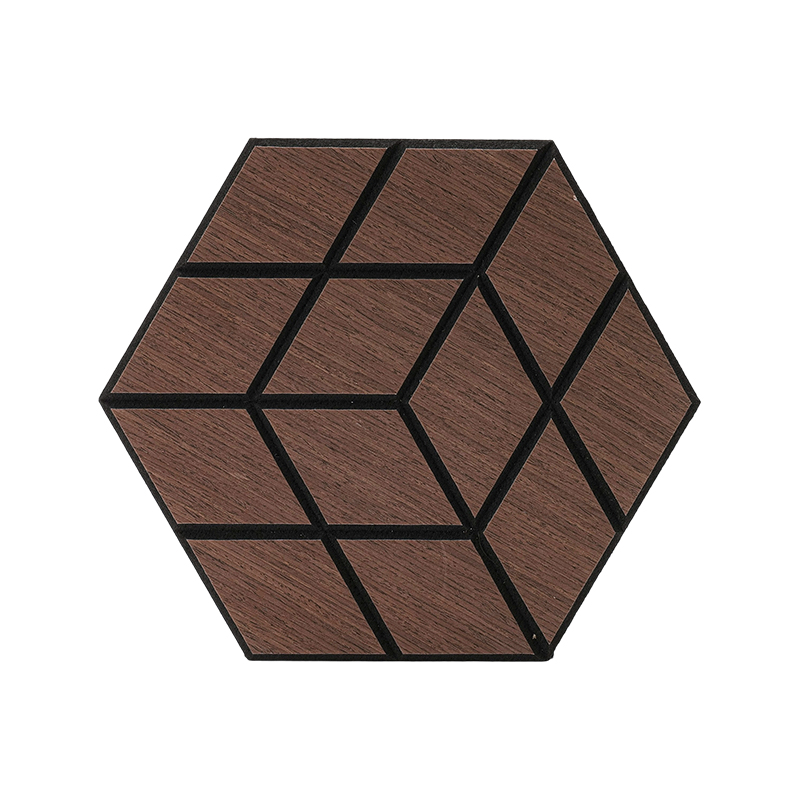

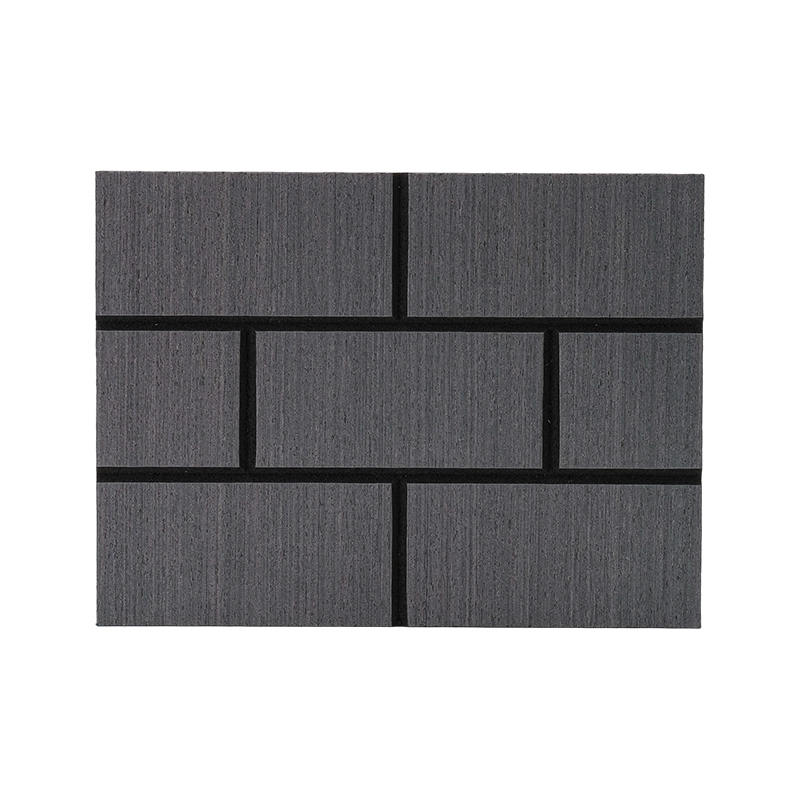

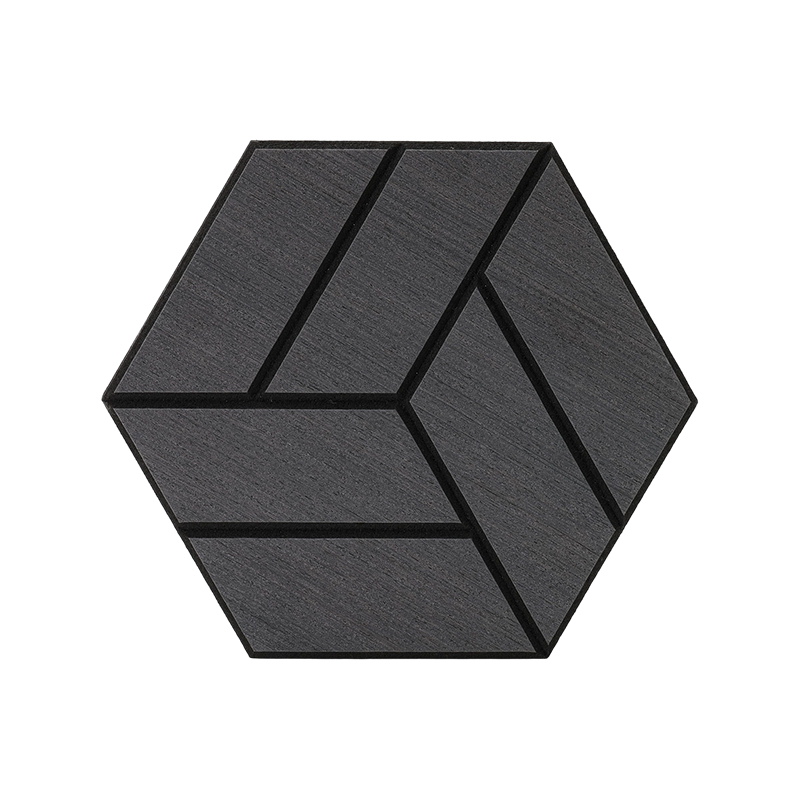

Wood Veneer Grooved, Polygonal Sound-absorbing Wall Panel, Applicable to Hotels and Offices

Wood Veneer Grooved, Polygonal Sound-absorbing Wall Panel, Applicable to Hotels and Offices

Introducing our innovative Wood Veneer Acoustic Panel, designed to revolutionize your interior spaces. Through a precise heat - pressing process, we've merged high - quality wood veneer with a powerful polyester fiber acoustic base.​
The result? A product that offers the authentic texture and beauty of real wood, enhancing the visual appeal of any room. Simultaneously, it effectively dampens noise, making it ideal for areas where tranquility is essential. Its mildew - and moisture - resistant nature ensures long - term durability, regardless of the environment.​
One of the standout features is its cut - able surface. This flexibility allows designers and homeowners to create customized, eye - catching patterns and shapes. It's an ideal addition to home decor, bringing a cozy and elegant touch to any space. For auditoriums, it improves sound quality while adding a touch of sophistication to the overall design.

Get a Quote
PREV: Spesonic Acoustic Wood Veneer Slat Wall Panels for Interior Wall and Ceilings Decor NEXT:3D Acoustic Wooden Veneer Slat Wall Panels for Interior Wall and Ceilings Panels

Wood Veneer Grooved, Polygonal Sound-absorbing Wall Panels combine the natural aesthetic of wood veneer with the acoustic performance of polyester fiber. The grooved and polygonal surface geometry breaks up sound waves while the porous fiber core absorbs mid-to-high frequency noise. Standard dimensions of 1220×2420mm with thickness options of 10mm or 13mm, and density grades of 1900g/m² or 2400g/m² provide selection based on acoustic requirements. The panels resist mildew and moisture while maintaining fireproof properties and full recyclability.

Thickness9mm · 12mm
Density1900 · 2400 g/m²
Colors8 standard / custom
Size1220×2420mm
Wood veneer surface
Natural wood grain texture with grooved and polygonal geometry for sound diffusion and visual depth. Available in 8 standard colors or custom staining.
Polyester fiber core
Open-cell structure providing sound absorption. Density options of 1900g/m² for general noise reduction and 2400g/m² for higher acoustic performance.
1900g/m²
NRC 0.55 – 0.65
Offices · Libraries · Reading rooms · Classrooms
2400g/m²
NRC 0.70 – 0.85
Meeting halls · Theaters · Music halls · Gyms
Mildew-resistant
Polyester fiber formulation resists fungal growth. Suitable for hotel corridors and kindergarten spaces.
Moisture-resistant
Dimensional stability maintained up to 85 percent relative humidity. Wood veneer surface sealed against edge swelling.
Fireproof
ASTM E84 Class A rating with flame spread index below 25. Suitable for commercial interiors requiring fire-rated materials.
Eco-friendly Recycling
Polyester fiber core contains recycled content. Panels fully recyclable after service life with wood veneer from managed plantations.
Product specifications
Product Name Wood Veneer Grooved, Polygonal Sound-absorbing Wall Panel
Material Polyester fiber + wood veneer
Standard Size 1220×2420×10mm / 1220×2420×13mm
Custom Size Available upon request
Colors 8 standard wood veneer finishes; custom staining available
Thickness 9mm · 12mm
Density 1900g/m² · 2400g/m²
Application scenarios
Meeting hall
Theater
Music hall
Gym
Manufacturing shop
Office
Hotel
Library
Reading room
Classroom
Kindergarten
Piano room
Installation and maintenance
Mounting Direct adhesive bonding to clean, dry walls. Mechanical fixing through wood veneer using countersunk screws. Z-clip system for removable assemblies.
Cutting Use carbide-tipped woodworking blades. Seal cut edges with compatible edge sealer to prevent moisture ingress.
Cleaning Dry dust weekly with soft brush. Spot clean with damp cloth using mild soap. Avoid liquid saturation or steam cleaning.
Storage Store panels flat in dry conditions. Relative humidity below 70 percent recommended. Avoid stacking more than 20 panels per pallet.
Frequently asked questions
How does the grooved and polygonal surface affect acoustic performance?
The grooved geometry breaks up direct sound waves and diffuses reflections, while the polygonal pattern increases surface area for sound wave interaction. This combined with the porous polyester fiber core achieves NRC ratings of 0.55-0.85 depending on density.
What is the difference between 9mm and 12mm thickness?
9mm panels absorb primarily mid-to-high frequencies (500Hz-4000Hz). 12mm panels extend absorption slightly lower into the 400Hz-500Hz range. For speech clarity applications (classrooms, offices), 9mm is sufficient. For music venues, 12mm provides broader bandwidth.
Can custom colors be matched beyond the 8 standard options?
Yes. Custom color matching requires minimum order quantity and adds 10-15 working days. Provide RAL, NCS, or physical sample for matching.
Class A fire rating Recycled polyester Mildew resistant Moisture resistant Customizable size 8 colors standard

Product Name

Wood veneer acustic panels

Material

Polyester fiber+wood veneer

Size

1220*2420*10mm

1220*2420*13mm

Customizable

Colors

8 or customized

Thickness

9mm, 12mm

Density

1900g/m2, 2400g/m2

Feature

Mildew-resistant, Moisture-resistant, Fireproof, Eco-friendly Recycling

Application

Meeting hall, theater, music hall, gym, manufacturing shop, office,  hotel, Library, reading room ,classroom, kindergarten, piano room etc
About Us
Yayin New Materials Jiangsu Co., Ltd.
Yayin New Materials Jiangsu Co., Ltd.

Yayin New Materials Jiangsu Co., Ltd. is headquartered in Lianyungang, Jiangsu Province, and has two branch factories located in Huzhou City, Zhejiang Province and Nanchang City, Jiangxi Province, with a total area of ​​more than 30,000 square meters.

Yayin is China Wood Veneer Grooved, Polygonal Sound-absorbing Wall Panel, Applicable to Hotels and Offices Suppliers and Wholesale Wood Veneer Grooved, Polygonal Sound-absorbing Wall Panel, Applicable to Hotels and Offices Factory. We specializes in the research, development, production and sales of carbon-neutral polyester fiber antibacterial sound-absorbing materials. It uses needle-punched non-woven technology to make recyclable polyester materials into environmentally friendly panels that are sound-absorbing, flame-retardant, heat-insulating and decorative.

The noise reduction coefficient (NRC) reaches 0.85, and the flame retardant effect reaches the A level of the US standard ASTM E84, the B level of the EU standard EN13501-1, and the A level of the EU standard UL723-2018. The formaldehyde emission test reaches the E0 level of the national standard.

Yayin has passed the quality management system certification (ISO9001) and the environmental management system certification (ISO14001).
